ARIZONA VORTEX KIT(RESCUE TRIPOD)

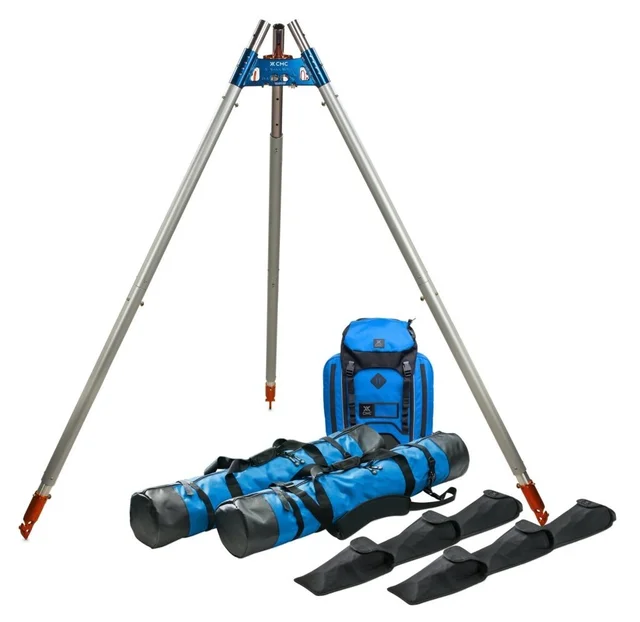

Kit Components

The Arizona Vortex Kit comes complete with:

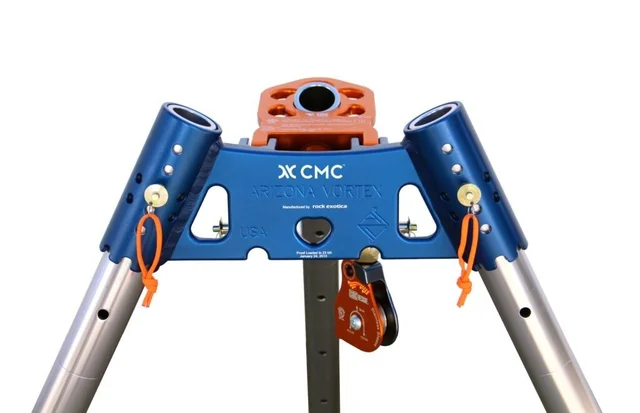

• 2-Piece Head Set
• Head Set Pulley Wheel
• Head Pins (4)
• Inner Legs (3)
• Outer Legs (7)
• Leg/Foot Pins (17)
• Flat (Omni) Feet (3)
• Raptor (Claw) Feet (3)
• Orange Pin Flags (21)
• Adjustable Hobble Straps (3)
• 8mm Tether Cord (40ft)
• User Manual
• Vortex Bag System

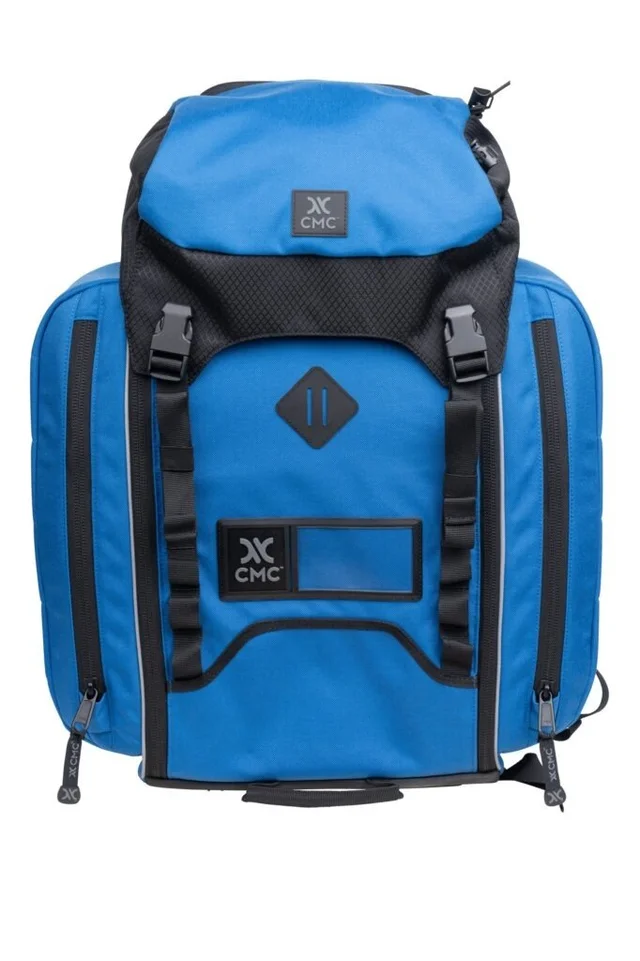

  • RigTech Pack™
  • Leg Bags with Shoulder Straps (2)
  • Foot Set Sleeves (2)
  • Pin Storage Bag

Vortex Bag System

Designed for ultimate accessibility and quick access, our backpack-style bags are extremely rugged and able to be carried on the back into the wilderness or an industrial environment such as stairwells. Made of durable Cordura® nylon, they feature extra protection in high-wear places for exceptional longevity. Included foot sleeves for the Flat and Raptor feet. The Vortex Bag System is included with the Arizona Vortex Kit and also sold as a replacement set.

Specifications

Min Height: 2.7 m (9 ft)
Max Height (with additional legs): 3.7 m (12 ft)
Weight (with both foot sets): 33 kg (72 lb)
Shipping Weight (including all parts, bags and packaging): 43 kg (95 lb)
Certification: Classified to NFPA – General Use
MBS: 36 kN (8,093 lbf)
