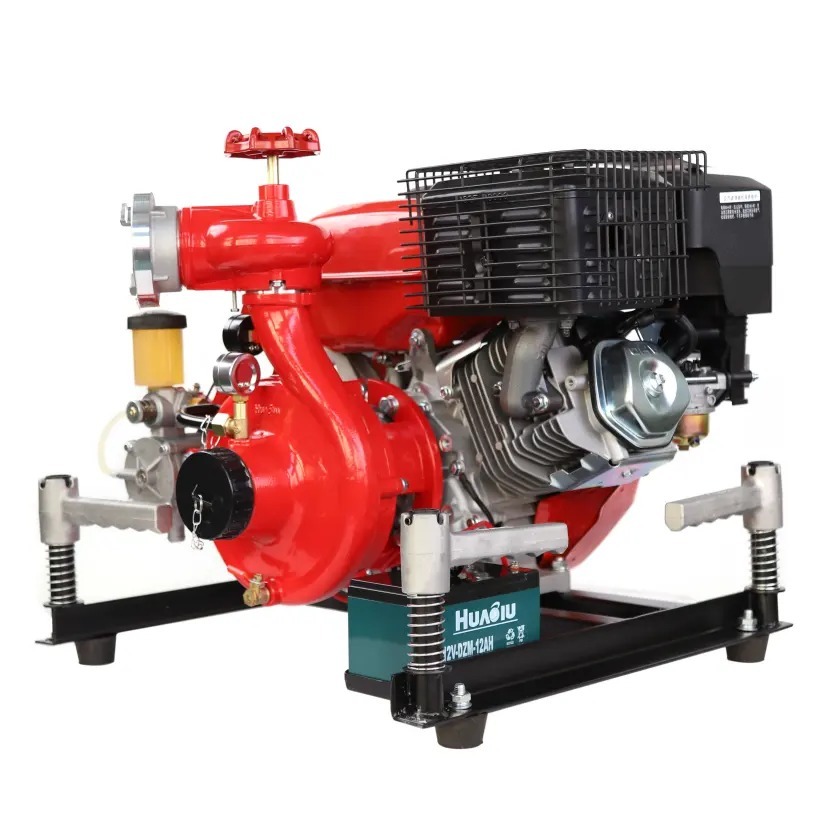

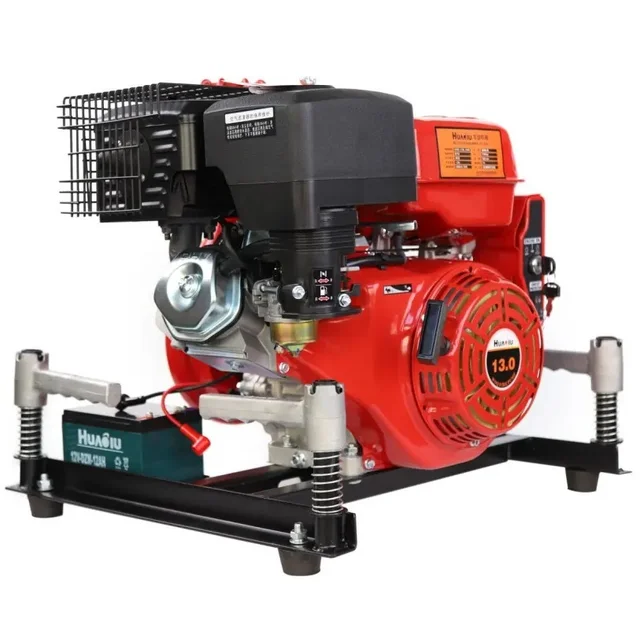

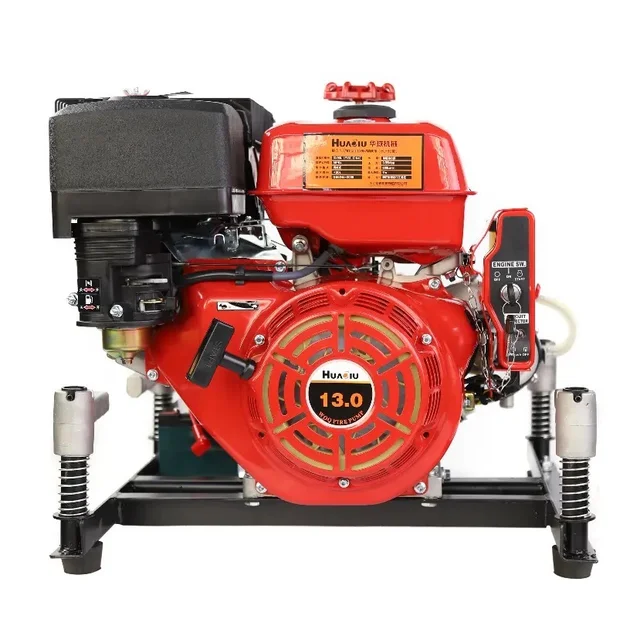

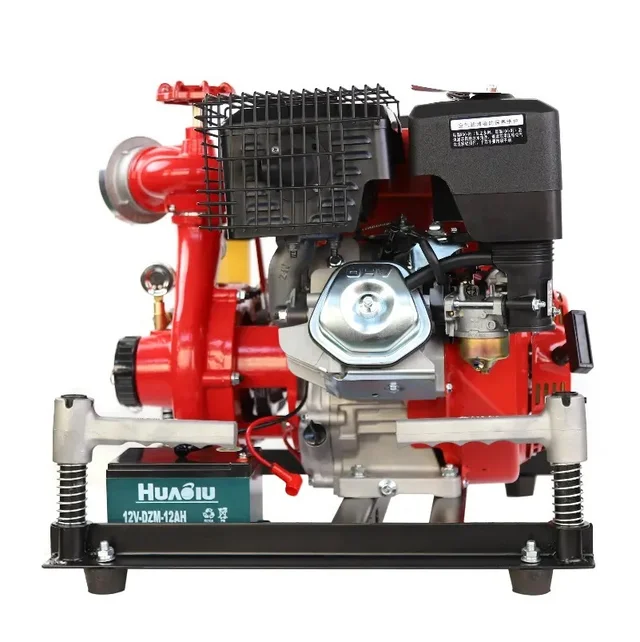

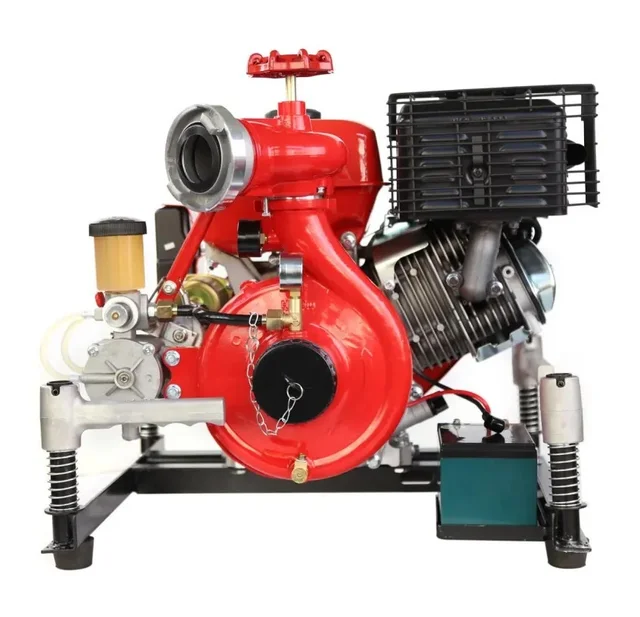

PORTABLE FIREFIGHTING PUMP

The Portable Firefighting Pump is a crucial asset for emergency response situations, offering a highly effective solution for extinguishing fires. Engineered for effortless transport and swift deployment, this pump is capable of delivering high pressure and volume to efficiently combat even the most challenging fires. Its robust construction ensures durability and consistent performance, making it an ideal choice for both professional firefighting teams and residential safety applications. Equip yourself with this compact yet powerful firefighting apparatus to enhance preparedness and response capabilities.

Engine

439cc, LIFAN

Output Power

13HP(9.6kW)

Pump Performance

400L/min@0.65MPa 600L/min@0.55MPa 1000L/min@0.35MPa

Total Weight

56kg

Dimensions

565x560x530(mm)

Model

4 Strokes

Cylinders

Single Cylinder

Fuel Type

Unleaded gasoline Min.87 octane

Fuel Tank Capacity

6.5L

Fuel System

Carburetor-manual choke

Lubrication system

Splash lubrication

Engine oil capacity

0.90L

Starter

Recoil/electric starter

Fuel consumption

3.5L/h

Pump Specification

Single suction with single stage centrifugal pump

Inlet Diameter

2.5'' (65mm)

Outlet Diameter

2.5''(65mm)

Number of outlets

1

Outlet valve ty

Ball Valvee

Water diversion method

Rotary vane vacuum pump water diversio

Suction time

≤15s

Maximum suction depth

9m

Maximum Water Lift

65m

Rated Flow

600L/min

Rated Pressure

0.55MPa
